Product Description
FEATURES
- 125A Contact Switching capability
- SPST-NO Contact Arrangement
- Max. Coil Power Waste:8-13W
- Application：For Electric Control System Of Communication Power Supply、Engineering Machine、Electromotion Forklift、Motor Car、Train、Watercraft and UPS etc.
- UL File No.：E145623
SPECIFICATIONS
| Model No. | ZLJM—125D/ |
| Contact Arrangement | 1H (SPST-NO) |
| Contact Material | AgCdO(12) |
| Contact Rating(at Resistive Load) | 125A 80VDC |
| 125A 250VAC | |
| Max. Switching Voltage | 80VDC，250VAC |
| Max. Switching Power | 25000VA |
| Endurance of Over Loading Current（7Ie/10S） | 875A/10S |
| Coil Rated Voltage | 12、24、48、60、72、96、120VDC,etc |
| Pick-up Voltage | (40～70) % of coil rated voltage |
| Drop-out Voltage | (5～30) % of coil rated voltage |
| Contact Pressure Drop | At most 30mv when 100A |
| Insulation Resistance | Min. 100MΩ at 500VDC |
| Dielectric Strength | 1000VAC 50 HZ/60 HZ (1 minute) |
| (Between Insulated Electric Parts) | |
| Operate Time | Max. 50mSec. |
| Release Time | Max. 50mSec. |
| Ambient Temper | -25℃~+60℃ |
| The shocking of fixed point | (10～200)HZ、Acceleration≤3.5g |
| Shocking | (60～100) ops/minute、Acceleration≤4g |
| Mechanical Life | 100,000 Operations (no load) |
| Electrical Life | 50,000 Operations (at rated load) |
FEATURES
- 400A Contact Switching capability
- SPST-NC Contact Arrangement
- Coil Power Waste :6.3W
- Application: For Electric Control System Of Communication Power Supply、Engineering Machine、Electromotion Forklift、Motor Car、Train、Watercraft and UPS etc.
- Technology Criterion：GB14048.4-2003
- TUV File no.: 50054080
- CCC File no.: 2004010304116988
- UL File no.: E145623
PECIFICATIONS

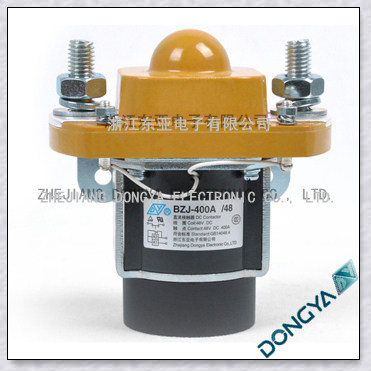

| Model No. | BZJ—400A |
| Contact Arrangement | 1D (SPST-NC) |
| Contact Material | AgCdO（12） |
| Contact Rating(at Resistive Load) | 400A 48VDC |
| 400A 250VAC | |
| Max. Switching Voltage | 60VDC，250VAC |
| Max. Switching Power | 100000VA |
| Endurance of Over Loading Current（7Ie/10S） | 2800A/10S |
| Coil Rated Voltage | （12、24、48、60、72、120 ）VDC,etc. |
| Pick-up Voltage | （40～70）% of coil rated voltage |
| Drop-out Voltage | （5～30）%V of coil rated voltage |
| Contact Pressure Drop | At most 30mV when 100A |
| Insulation Resistance | Min. 100MΩ at 500VDC |
| Dielectric Strength | 1000VAC 50 HZ/60 HZ (1 minute) |
| (Between Insulated Electric Parts) | |
| Operate Time | Max. 50mSec. |
| Release Time | Max. 50mSec. |
| Ambient Temperature | -40℃~+60℃ |
| The shocking of fixed point | (10～200)HZ、Acceleration≤3.5g |
| Shocking | (60～100) time/minute、Acceleration≤4g |
| Mechanical Life | 100,000 Operations (no load) |
| Electrical Life | 50,000 Operations (at rated load) |
